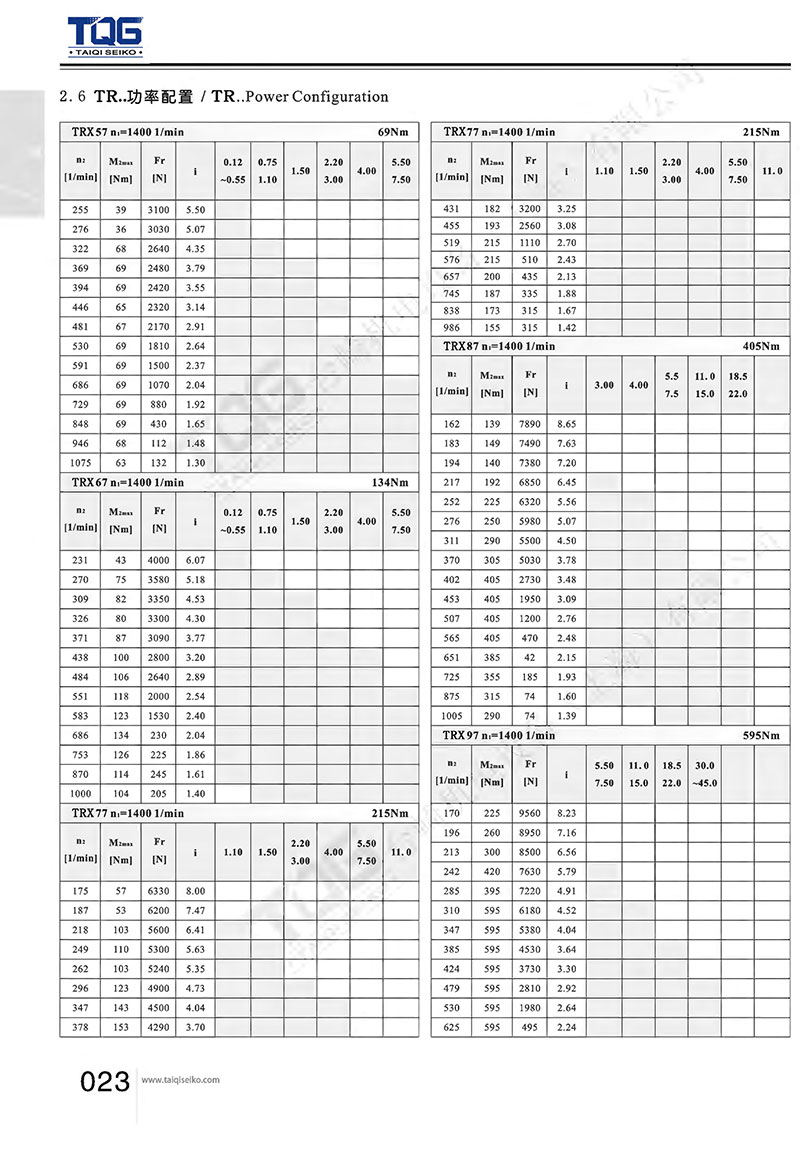

技术参数：

速比范围：R基本型3.33～289.74，RX型1.3～8.65，R/R组合型可达到27001
扭矩范围：R基本型85～18000 Nm，RX型20～1680 Nm
功率范围：R基本型0.18～160 kW，RX型0.18～132 kW

性能特点：

1、小偏置输出，结构紧凑，限度利用箱体空间，二级、三级在同一箱体内。
2、采用整体式铸造箱体,箱体结构刚度好,易于提高轴的强度和轴承寿命。

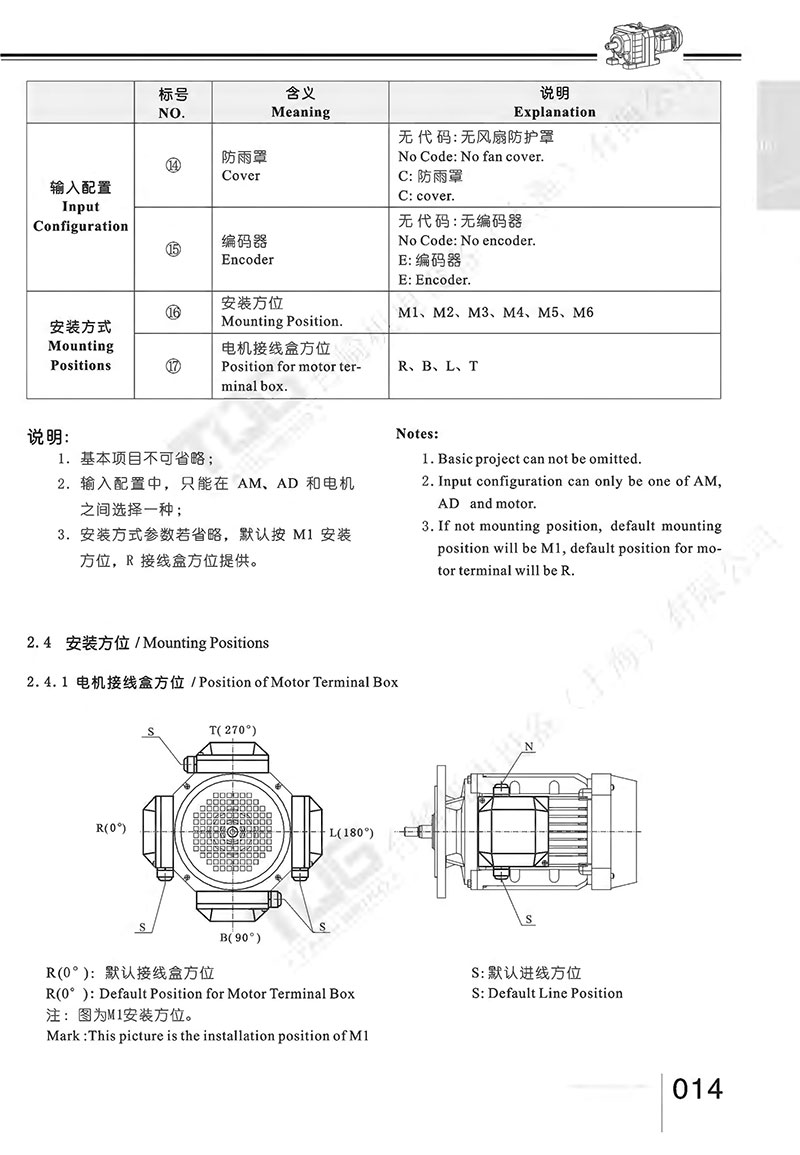

3、安装方式：底脚安装、法兰安装有大小法兰，易于选择。
4、实心轴输出，平均效率是二级96%、三级94%、R/R 组合平均效率85%。
5、专为搅拌设计的RM系列能承载较大的轴向力、径向力。

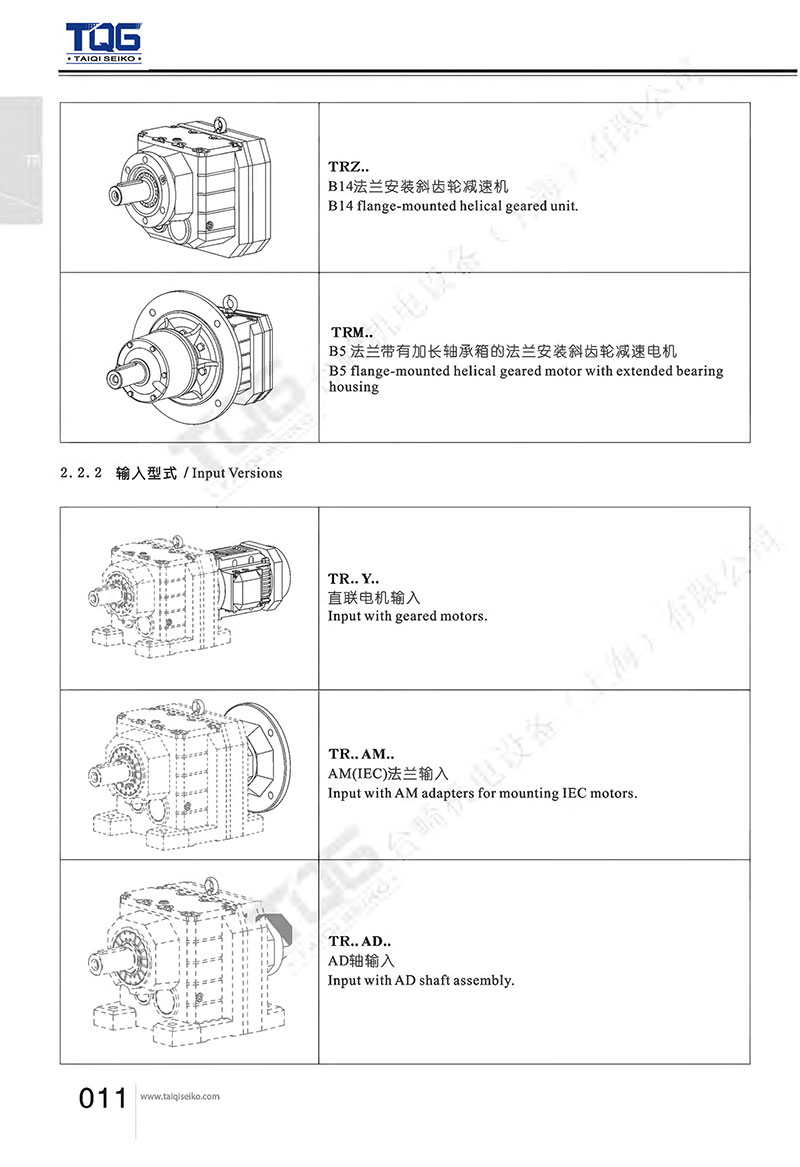

结构形式：

R：轴伸式底脚安装 RF：法兰安装
R…F：底脚法兰安装 RM: 法兰安装带加长轴承箱
RX：单级底脚安装 RXF：单级法兰安装

R17、R27、R37、R47、R57、R67、R77、R87、R97、R107、R137、R147、R167
RF17、RF27、RF37、RF47、RF57、RF67、RF77、RF87、RF97、RF107、RF137、RF147、RF167

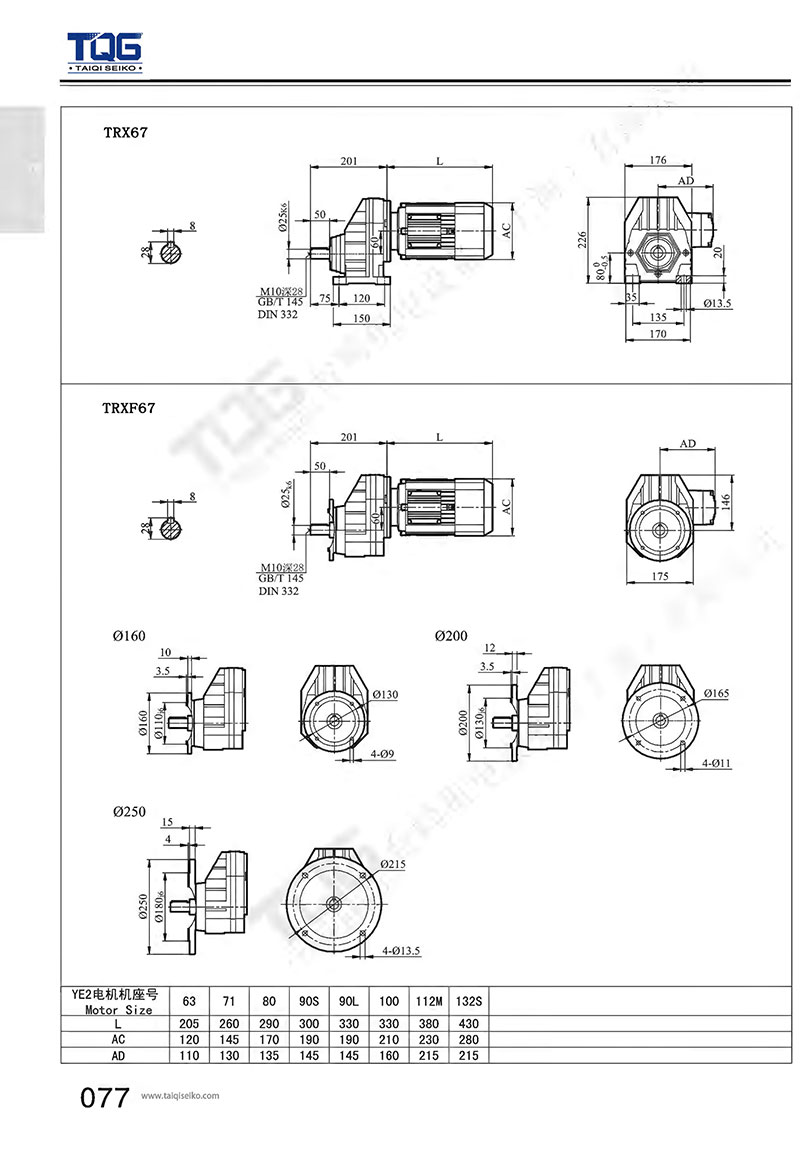

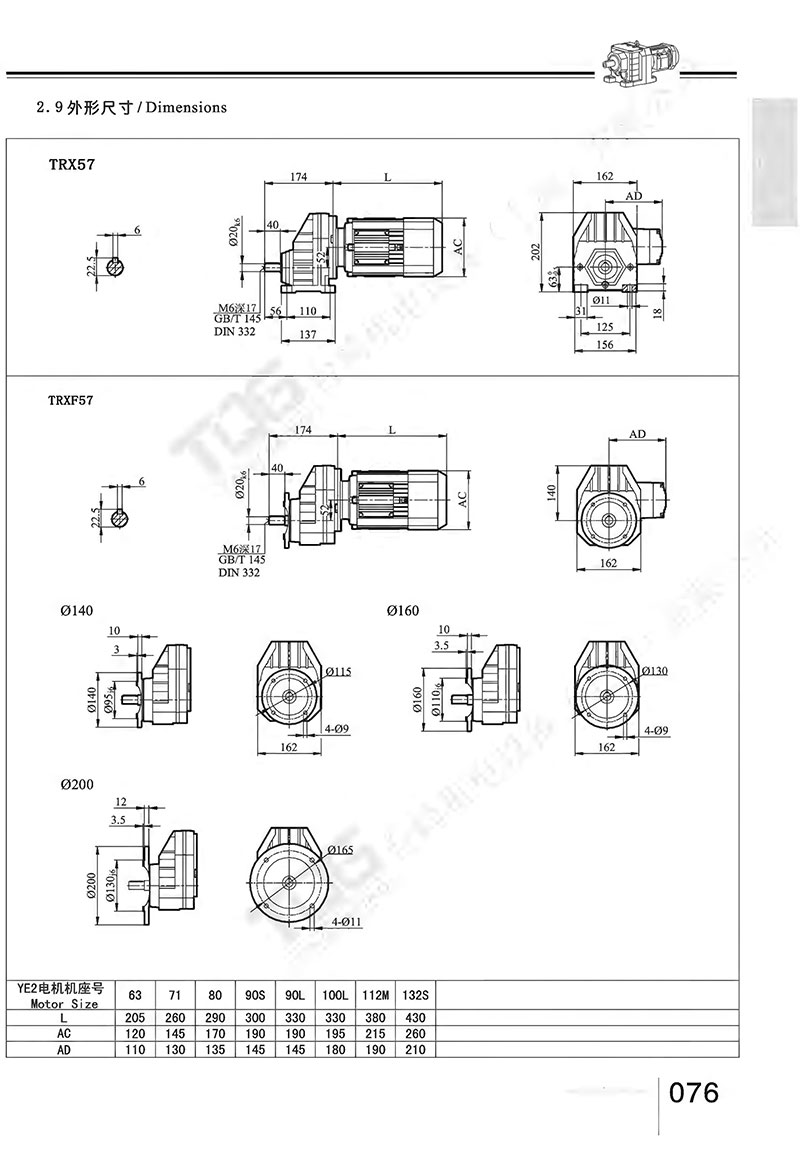

RX37、RX57、RX67、RX77、RX87、RX97、RX107、RX127、RX157
RXF37、RXF57、RXF67、RXF77、RXF87、RXF97、RXF107、RXF127、RXF157
RS27、RS37、RS47、RS57、RS67、RS77、RS87、RS97、RS107、RS137、RS147、RS167
R27R17、R37R17、R47R37、R57R37、R67R37、R77R37、R87R57、R97R57、R107R77、R137R77、R147R77、R147R87、R167R97、R167R107
RFS27、RFS37、RFS47、RFS57、RFS67、RFS77、RFS87、RFS97、RFS107、RFS137、RFS147、RFS167
RF27R17、RF37R17、RF47R37、RF57R37、RF67R37、RF77R37、RF87R57、RF97R57、RF107R77、RF137R77、RF147R77、RF147R87、RF167R97、RF167R107
RXS37、RXS57、RXS67、RXS77、RXS87、RXS97、RXS107、RXS127、RXS157
RXFS37、RXFS57、RXFS67、RXFS77、RXFS87、RXFS97、RXFS107、RXFS127、RXFS157
